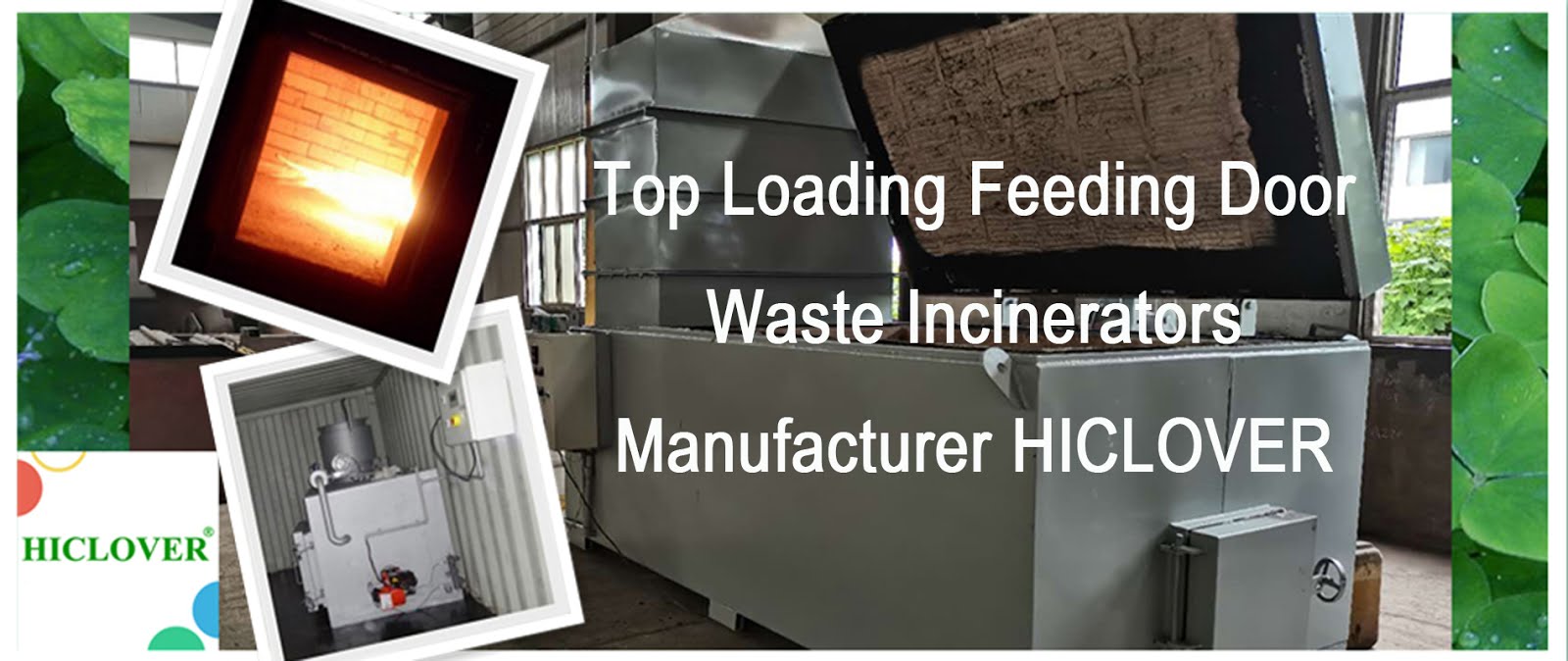

Waste Incineration Treatment Model TS1000 1000kgs per hour Top Feeding
Waste Incineration Treatment Model TS1000 1000kgs per hour Top Feeding
HICLOVER is growing brand for environmental protection field, and market share with most of Africa, Middle East, Southeast Asia countries and part of North America, Europe territory. We are trusted partner for governmental organizations, non-profit organizations, international contractors, logistics organizations, military, pet cremation business owners, etc. We have export experience more than 40 countries, including war zone like Iraq, Afghanistan, Somalia, South Sudan. Mobile: +86-13813931455(WhatsApp) Website: www.hiclover.com Email: [email protected] Email: [email protected]
Items/Model
TS1000
Principle
Waste Incineration Treatment
Burn Rate
Average 1000 kg/hour
Feed Capacity
Average 3000kg/feeding
Control Mode
PLC(Programmable Logic Controller Incinerator)
Combustion Chamber
4800Liter
Internal Dimensions
400*120*100 cm
Secondary Chamber
1000Liter
Feed Mode
Manual/Forklift
Voltage
220V/380V
Power
5.0Kw
Oil Consumption (kg/hour)
Average 67(DO)
Gas Consumption (m3/hour)
***
Temperature Monitor
Digital Display
Temperature Protection
Yes
Oil Tank
800Liter
Feed Door
300x120cm(Electric Opening)
Chimney
6Meter
Chimney Type
Stainless Steel
1st. Chamber Temperature
800℃–1000℃
2nd. Chamber Temperature
1000℃-1200℃
Residency Time
2.0 Sec.
Gross Weight
18000kg
External Dimensions
700x220x320cm(without chimney)
|
HICLOVER Incinerator/Parts Range  |
Main Feature Nanjing Clover Medical Technology Co.,Ltd.
Tel: +86-13813931455(WhatsApp)
Website: www.hiclover.com
Email: [email protected]
Email: [email protected]
Add: Gangjia Zhihui Industrial Area, Xin Gangwan Rd. Liuhe, Nanjing, China 211500
HICLOVER Solution for Fighting COVID-19, with ISO9001/CE Certification. Auto. Control Waste Incinerator & Auto. Roll Air Filter(Air Purification) |
|
Medical Waste Incinerators |
HICLOVER 10-500kgs/Hr.Double Combustion Chambers |
|
Single Combustion Chamber |
Small, Cheap,10-20kgs/Hr. |
|
Three Combustion Chambers(Optional) Nanjing Clover Medical Technology Co.,Ltd.
Tel: +86-13813931455(WhatsApp)
Website: www.hiclover.com
Email: [email protected]
Email: [email protected]
Add: Gangjia Zhihui Industrial Area, Xin Gangwan Rd. Liuhe, Nanjing, China 211500
HICLOVER Solution for Fighting COVID-19, with ISO9001/CE Certification. Auto. Control Waste Incinerator & Auto. Roll Air Filter(Air Purification) |
3 Chambers for high risk waste |
|
Pet Cremation Equipment |
For Pet(small/big) Cremation Business |
|
Animal Incineration Equipment |
For other animal incineration |
|
Items/Model |
TS100(PLC) Nanjing Clover Medical Technology Co.,Ltd.
Tel: +86-13813931455(WhatsApp)
Website: www.hiclover.com
Email: [email protected]
Email: [email protected]
Add: Gangjia Zhihui Industrial Area, Xin Gangwan Rd. Liuhe, Nanjing, China 211500
HICLOVER Solution for Fighting COVID-19, with ISO9001/CE Certification. Auto. Control Waste Incinerator & Auto. Roll Air Filter(Air Purification) |
TS150(PLC) |
TS300(PLC) |
TS500(PLC) |
|
Burn Rate (Average) |
100 kg/hour |
150 kg/hour |
300 kg/hour |
500 kg/hour Nanjing Clover Medical Technology Co.,Ltd.
Tel: +86-13813931455(WhatsApp)
Website: www.hiclover.com
Email: [email protected]
Email: [email protected]
Add: Gangjia Zhihui Industrial Area, Xin Gangwan Rd. Liuhe, Nanjing, China 211500
HICLOVER Solution for Fighting COVID-19, with ISO9001/CE Certification. Auto. Control Waste Incinerator & Auto. Roll Air Filter(Air Purification) |
|
Control Mode |
PLC Auto. |
PLC Auto. |
PLC Auto. |
PLC Auto. |
|
Combustion Chamber |
1200L Nanjing Clover Medical Technology Co.,Ltd.
Tel: +86-13813931455(WhatsApp)
Website: www.hiclover.com
Email: [email protected]
Email: [email protected]
Add: Gangjia Zhihui Industrial Area, Xin Gangwan Rd. Liuhe, Nanjing, China 211500
HICLOVER Solution for Fighting COVID-19, with ISO9001/CE Certification. Auto. Control Waste Incinerator & Auto. Roll Air Filter(Air Purification) |
1500L |
2000L |
3000L |
|
Internal Dimensions |
120x100x100cm |
150x100x100cm |
170x120x100cm |
210x120x120cm |
|
Secondary Chamber |
600L Nanjing Clover Medical Technology Co.,Ltd.
Tel: +86-13813931455(WhatsApp)
Website: www.hiclover.com
Email: [email protected]
Email: [email protected]
Add: Gangjia Zhihui Industrial Area, Xin Gangwan Rd. Liuhe, Nanjing, China 211500
HICLOVER Solution for Fighting COVID-19, with ISO9001/CE Certification. Auto. Control Waste Incinerator & Auto. Roll Air Filter(Air Purification) |
750L |
1000L |
1500L |
|
Smoke Filter Chamber |
Dry Scrubber |
Dry Scrubber |
Dry Scrubber |
Dry Scrubber |
|
Feed Mode |
Manual Nanjing Clover Medical Technology Co.,Ltd.
Tel: +86-13813931455(WhatsApp)
Website: www.hiclover.com
Email: [email protected]
Email: [email protected]
Add: Gangjia Zhihui Industrial Area, Xin Gangwan Rd. Liuhe, Nanjing, China 211500
HICLOVER Solution for Fighting COVID-19, with ISO9001/CE Certification. Auto. Control Waste Incinerator & Auto. Roll Air Filter(Air Purification) |
Manual |
Manual |
Manual |
|
Voltage |
220V |
220V |
220V |
220V |
|
Power |
1.38Kw |
1.69Kw |
2.57Kw |
4.88Kw |
|
Diesel Oil Consumption (kg/hour) |
Ave.20.4 |
Ave.24.2 |
Ave.33 |
Ave.44 |
|
Natural Gas Consumption (m3n/hour) |
Ave.24.5 |
Ave.29 |
Ave.39.6 |
Ave.52.8 |
|
Temperature Monitor |
Yes |
Yes |
Yes |
Yes |
|
Temperature Protection |
Yes |
Yes |
Yes |
Yes |
|
Oil Tank |
200L |
300L |
500L |
500L |
|
Chimney |
10Meter |
10Meter |
14Meter |
14Meter |
|
Chimney Type |
Stainless Steel |
Stainless Steel |
Stainless Steel |
Stainless Steel |
|
1st. Chamber Temperature |
800℃–1000℃ |
800℃–1000℃ |
800℃–1000℃ |
800℃–1000℃ |
|
2nd. Chamber Temperature |
1000℃-1200℃ |
1000℃-1200℃ |
1000℃-1200℃ |
1000℃-1200℃ |
|
Residency Time |
2.0 Sec. |
2.0 Sec. |
2.0 Sec. |
2.0 Sec. |
|
Gross Weight |
6000kg |
8500kg |
11000kg |
16000kg |
|
External Dimensions |
260x150x180cm |
300x160x190cm |
400x210x300cm |
450x210x300cm |
CE Certification Pass
2020-11-04
