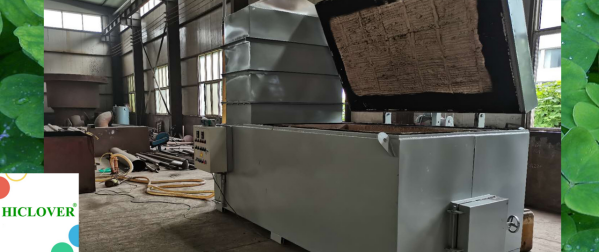

Large Incinerator Model TS800 Top Openning Door 800kgs/500kgs/300kgs/200kgs/100kgs per hour
Large Incinerator Model TS800 Top Openning Door 800kgs/500kgs/300kgs/200kgs/100kgs per hour
HICLOVER is growing brand for environmental protection field, and market share with most of Africa, Middle East, Southeast Asia countries and part of North America, Europe territory. We are trusted partner for governmental organizations, non-profit organizations, international contractors, logistics organizations, military, pet cremation business owners, etc. We have export experience more than 40 countries, including war zone like Iraq, Afghanistan, Somalia, South Sudan. Mobile: +86-13813931455(WhatsApp) Website: www.hiclover.com Email: [email protected] Email: [email protected]
|
Items/Model  |
TS800 Nanjing Clover Medical Technology Co.,Ltd.
Tel: +86-13813931455(WhatsApp)
Website: www.hiclover.com
Email: [email protected]
Email: [email protected]
Add: Gangjia Zhihui Industrial Area, Xin Gangwan Rd. Liuhe, Nanjing, China 211500
HICLOVER Solution for Fighting COVID-19, with ISO9001/CE Certification. Auto. Control Waste Incinerator & Auto. Roll Air Filter(Air Purification) (Optional Part: Stainless Steel Wet scrubber & PLC Control System) |
|
Picture |
|
|
Principle Nanjing Clover Medical Technology Co.,Ltd.
Tel: +86-13813931455(WhatsApp)
Website: www.hiclover.com
Email: [email protected]
Email: [email protected]
Add: Gangjia Zhihui Industrial Area, Xin Gangwan Rd. Liuhe, Nanjing, China 211500
HICLOVER Solution for Fighting COVID-19, with ISO9001/CE Certification. Auto. Control Waste Incinerator & Auto. Roll Air Filter(Air Purification) |
Medical Waste Incineration Treatment |
|
Burn Rate |
Average 100kgs per hour(Optional 800kgs/500kgs/300kgs/200kgs) |
|
Feed Capacity |
Average 3000kg/feeding |
|
Control Mode |

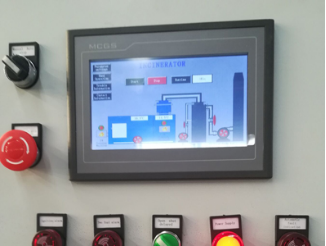

PLC(Programmable Logic Controller Incinerator) Nanjing Clover Medical Technology Co.,Ltd.
Tel: +86-13813931455(WhatsApp)
Website: www.hiclover.com
Email: [email protected]
Email: [email protected]
Add: Gangjia Zhihui Industrial Area, Xin Gangwan Rd. Liuhe, Nanjing, China 211500
HICLOVER Solution for Fighting COVID-19, with ISO9001/CE Certification. Auto. Control Waste Incinerator & Auto. Roll Air Filter(Air Purification) |
|
Combustion Chamber |
3000Liter |
|
Internal Dimensions |
300*100*100 cm |
|
Secondary Chamber |
800Liter |
|
Feed Mode |
Manual/Forklift Nanjing Clover Medical Technology Co.,Ltd.
Tel: +86-13813931455(WhatsApp)
Website: www.hiclover.com
Email: [email protected]
Email: [email protected]
Add: Gangjia Zhihui Industrial Area, Xin Gangwan Rd. Liuhe, Nanjing, China 211500
HICLOVER Solution for Fighting COVID-19, with ISO9001/CE Certification. Auto. Control Waste Incinerator & Auto. Roll Air Filter(Air Purification) |
|
Voltage |
220V/380V |
|
Power |
5.0Kw |
|
Oil Consumption (kg/hour) |
Average 20.4(DO) |
|
Gas Consumption (m3/hour) Nanjing Clover Medical Technology Co.,Ltd.
Tel: +86-13813931455(WhatsApp)
Website: www.hiclover.com
Email: [email protected]
Email: [email protected]
Add: Gangjia Zhihui Industrial Area, Xin Gangwan Rd. Liuhe, Nanjing, China 211500
HICLOVER Solution for Fighting COVID-19, with ISO9001/CE Certification. Auto. Control Waste Incinerator & Auto. Roll Air Filter(Air Purification) |
*** |
|
Temperature Monitor |
Digital Display |
|
Temperature Protection |
Yes |
|
Oil Tank |
800Liter |
|
Feed Door |
200x100cm(Electric Opening) |
|
Chimney Nanjing Clover Medical Technology Co.,Ltd.
Tel: +86-13813931455(WhatsApp)
Website: www.hiclover.com
Email: [email protected]
Email: [email protected]
Add: Gangjia Zhihui Industrial Area, Xin Gangwan Rd. Liuhe, Nanjing, China 211500
HICLOVER Solution for Fighting COVID-19, with ISO9001/CE Certification. Auto. Control Waste Incinerator & Auto. Roll Air Filter(Air Purification) |
6Meter |
|
Chimney Type |
Stainless Steel |
|
1st. Chamber Temperature |
800℃–1000℃ |
|
2nd. Chamber Temperature |
1000℃-1200℃ |
|
Residency Time |
2.0 Sec. |
|
Gross Weight Nanjing Clover Medical Technology Co.,Ltd.
Tel: +86-13813931455(WhatsApp)
Website: www.hiclover.com
Email: [email protected]
Email: [email protected]
Add: Gangjia Zhihui Industrial Area, Xin Gangwan Rd. Liuhe, Nanjing, China 211500
HICLOVER Solution for Fighting COVID-19, with ISO9001/CE Certification. Auto. Control Waste Incinerator & Auto. Roll Air Filter(Air Purification) |
9000kg |
|
External Dimensions |
600x220x320cm(without chimney) |
Email: [email protected]
Optional Part:
Stainless Steel Wet scrubber & PLC Control System
|
HICLOVER Incinerator/Parts Range |
Main Feature |
|
Medical Waste Incinerators |
HICLOVER 10-500kgs/Hr.Double Combustion Chambers |
|
Single Combustion Chamber |
Small, Cheap,10-20kgs/Hr. |
|
Three Combustion Chambers(Optional) |
3 Chambers for high risk waste |
|
Pet Cremation Equipment |
For Pet(small/big) Cremation Business |
|
Animal Incineration Equipment |
For other animal incineration |
|
Items/Model |
TS100(PLC) |
TS150(PLC) |
TS300(PLC) |
TS500(PLC) |
|
Burn Rate (Average) |
100 kg/hour |
150 kg/hour |
300 kg/hour |
500 kg/hour |
|
Control Mode |
PLC Auto. |
PLC Auto. |
PLC Auto. |
PLC Auto. |
|
Combustion Chamber |
1200L |
1500L |
2000L |
3000L |
|
Internal Dimensions |
120x100x100cm |
150x100x100cm |
170x120x100cm |
210x120x120cm |
|
Secondary Chamber |
600L |
750L |
1000L |
1500L |
|
Smoke Filter Chamber |
Dry Scrubber |
Dry Scrubber |
Dry Scrubber |
Dry Scrubber |
|
Feed Mode |
Manual |
Manual |
Manual |
Manual |
|
Voltage |
220V |
220V |
220V |
220V |
|
Power |
1.38Kw |
1.69Kw |
2.57Kw |
4.88Kw |
|
Diesel Oil Consumption (kg/hour) |
Ave.20.4 |
Ave.24.2 |
Ave.33 |
Ave.44 |
|
Natural Gas Consumption (m3n/hour) |
Ave.24.5 |
Ave.29 |
Ave.39.6 |
Ave.52.8 |
|
Temperature Monitor |
Yes |
Yes |
Yes |
Yes |
|
Temperature Protection |
Yes |
Yes |
Yes |
Yes |
|
Oil Tank |
200L |
300L |
500L |
500L |
|
Chimney |
10Meter |
10Meter |
14Meter |
14Meter |
|
Chimney Type |
Stainless Steel |
Stainless Steel |
Stainless Steel |
Stainless Steel |
|
1st. Chamber Temperature |
800℃–1000℃ |
800℃–1000℃ |
800℃–1000℃ |
800℃–1000℃ |
|
2nd. Chamber Temperature |
1000℃-1200℃ |
1000℃-1200℃ |
1000℃-1200℃ |
1000℃-1200℃ |
|
Residency Time |
2.0 Sec. |
2.0 Sec. |
2.0 Sec. |
2.0 Sec. |
|
Gross Weight |
6000kg |
8500kg |
11000kg |
16000kg |
|
External Dimensions |
260x150x180cm |
300x160x190cm |
400x210x300cm |
450x210x300cm |
CE Certification Pass
